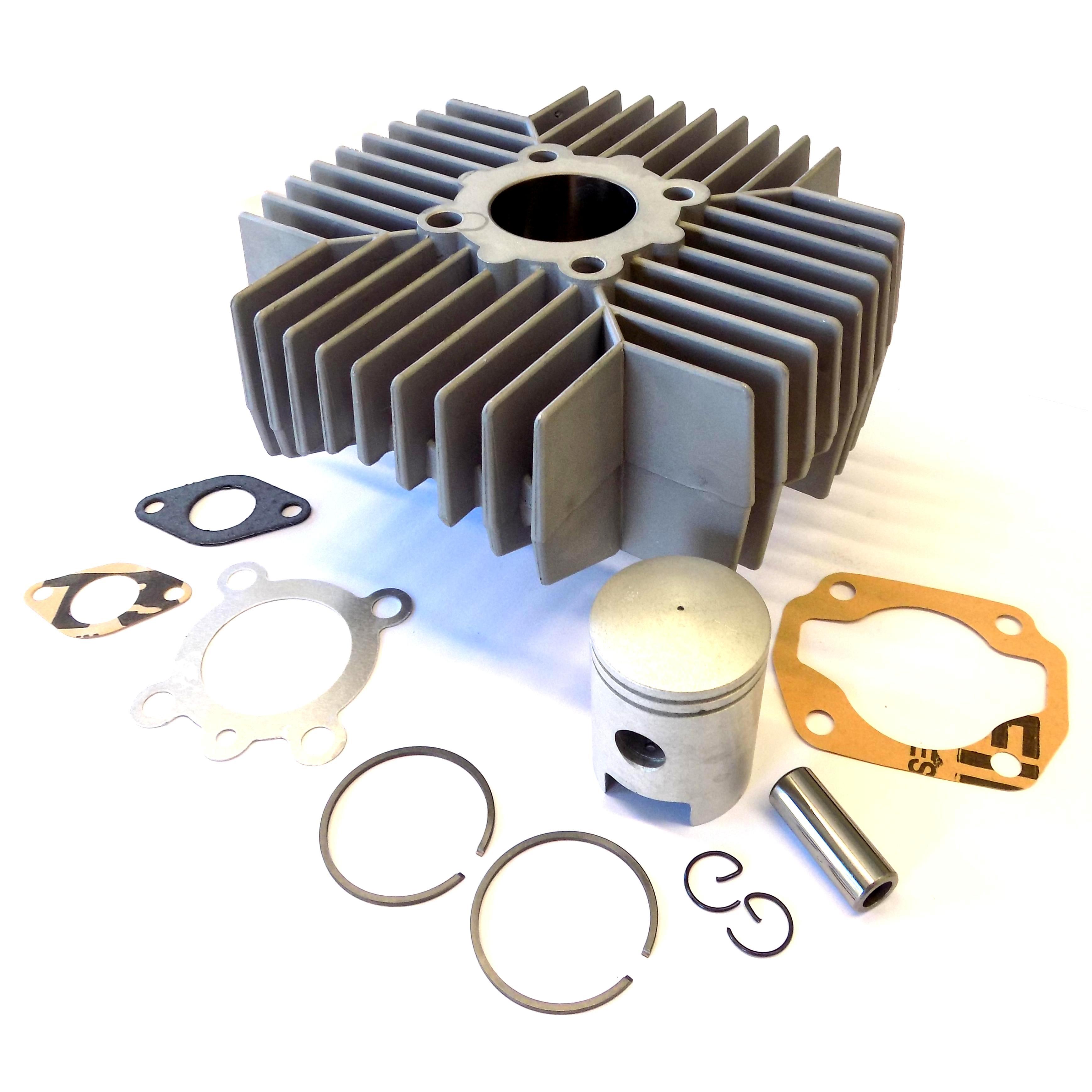

Cylinder Puch Monza, Nikasil coated
Bore: 38 mm
Piston pin diameter: 12 mm
Distance of the threaded holes f. Stud bolt exhaust side: 42 mm
Thread f. Stud bolt exhaust side: M 6
Distance of the threaded holes f. Stud bolt inlet side: 38 mm
Thread f. Stud bolt inlet side: M 6
Diameter at the cylinder base: 43 mm
Distance between stud bolts: 43 x 43 mm
suitable for:
PUCH
2-, 3-, and 4-speed engine
